What is the ReeR Mosaic safety controller?

The ReeR Mosaic is a modular programmable safety controller designed to monitor and manage multiple machine safety devices from a single configurable platform.

Which safety devices can be connected to the Mosaic controller?

The Mosaic controller supports safety light curtains, laser scanners, safety switches, emergency stop devices, safety mats, photocells, two-hand control units and many other industrial safety devices.

How does BIBUS Kft. support Mosaic projects?

The engineers at BIBUS Kft. provide technical support for controller selection, safety concept development, PL/SIL calculations, system configuration and complete machine safety integration.

The ReeR Mosaic is a modular, configurable programmable safety controller designed to manage and monitor complete machine and plant safety systems from a single platform. Its flexible architecture allows multiple safety devices to be integrated into one safety control system, simplifying machine design while reducing wiring and installation complexity.

The Mosaic platform can simultaneously monitor safety light curtains, laser scanners, safety photocells, safety switches, pressure-sensitive safety mats, emergency stop devices, two-hand control units and many other safety components. Centralized safety management enables greater flexibility, easier diagnostics and simplified future system expansion.

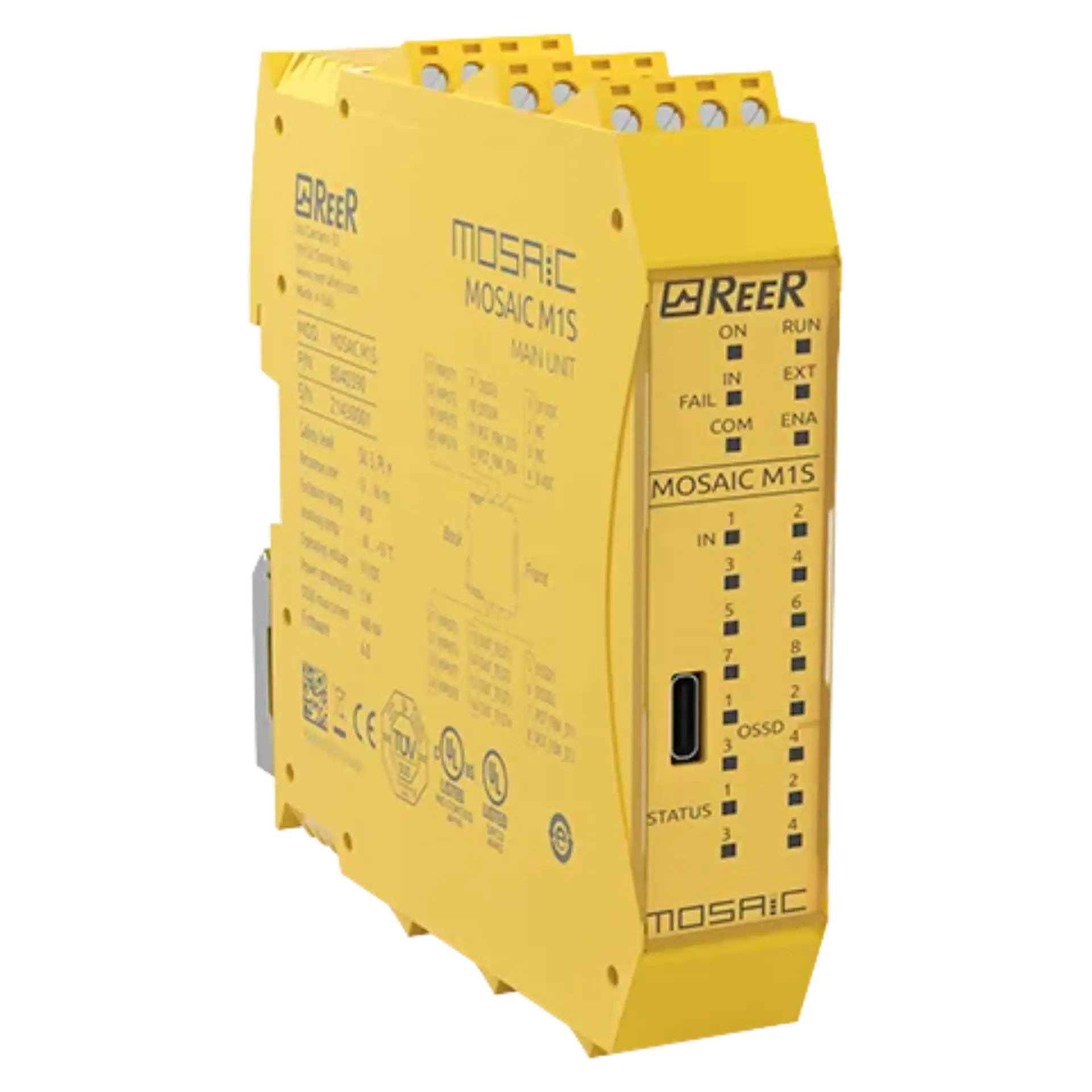

The system is built around the M1 Master module, which can be expanded with up to 16 additional expansion modules, supporting as many as 128 safety inputs and 16 OSSD safety outputs. Depending on the application, dedicated input, output and relay expansion modules allow the controller to be tailored to virtually any machine safety architecture.

Configuration is performed using the intuitive Mosaic Safety Designer (MSD) software, supplied free of charge with every Master unit. The graphical programming environment includes integrated logic functions such as timers, counters, memory functions, muting logic and logical operators, enabling fast development of complex safety applications without requiring dedicated PLC programming.

The ReeR Mosaic safety controller is certified up to SIL 3, Performance Level e (PL e) and Category 4, making it suitable for demanding industrial automation and machine safety applications.

Key Features

Q: How many inputs and outputs does the Mosaic system support?

A complete Mosaic system can manage up to 128 safety inputs and 16 OSSD safety outputs, depending on the selected expansion modules.

Q: Which safety standards does the Mosaic controller meet?

The ReeR Mosaic safety controller is certified up to SIL 3, Performance Level e (PL e) and Category 4, making it suitable for high-performance machine safety applications.

✔ Modular programmable safety controller

✔ SIL 3, PL e, Category 4 certified

✔ Up to 128 safety inputs

✔ Up to 16 OSSD safety outputs

✔ Expandable with up to 16 expansion modules

✔ Compact module design

✔ Graphical MSD programming software

✔ Integrated timers, counters and muting logic

✔ Supports virtually all machine safety devices

✔ Engineering support from BIBUS Kft.

The ReeR Mosaic safety controller is ideal for robotic cells, packaging machinery, assembly systems, CNC machines, automated production lines, material handling systems and complex industrial automation projects requiring flexible and scalable safety control.

The engineers at BIBUS Kft. assist customers with safety architecture design, controller selection, system configuration and complete machine safety integration.
